HARDWARE WALLET CLIENT FOR TREZOR GUIDE#

TARGET AUDIENCE#

This guide is for users who use a Trezor hardware wallet with Electrum-MTNS wallet.

OUTLINE#

Install the OmotenashiCoin firmware for trezor in your hardware wallet in advance.
When updating the firmware, transfer the crypto assets in the hardware wallet to another wallet.
Click here for details on installing trezor firmware.
This page mainly describes how to use the Trezor device.

INITIAL SETTING#

This section describes the configuration steps immediately after installing the MTNS trezor firmware.

Download Electrum-MTNS binary file.#

$ wget https://github.com/omotenashicoin-project/OmotenashiCoin-HDwalletbinaries/raw/master/stable/electrum-mtns-3.3.9-x86_64.AppImage
$ chmod +x electrum-mtns-3.3.9-x86_64.AppImage

Connect your hardware wallet to your PC.#

To run Electrum-MTNS.#

$ ./electrum-mtns-3.3.9-x86_64.AppImage

Setup Wizard Initial Settings#

  1. Connect Trezor device on your PC. Screenshot
  2. Input your wallet name.
    A wallet file is created with the name entered here.
    This is the name that is referred when managing multiple wallets with one Electrom-MTNS.
    Screenshot
  3. Select Stantard wallet.
    Screenshot
  4. Select Use a hardware device.
    Screenshot

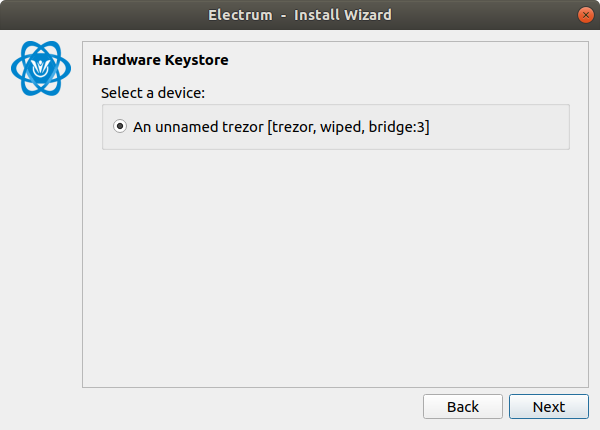

  5. This appears when a Trezor device is found.
    If the screen is different and you are using Windows, please refer to this page. Screenshot

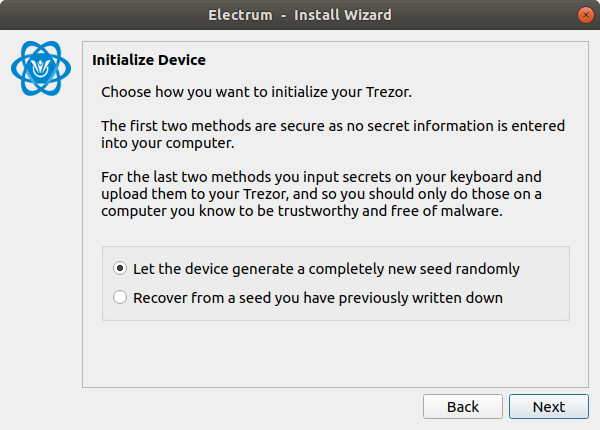

  6. Initialize setting Click Next button.
    Screenshot
    Go to your Trezor device.
    Push the right button on the trezor body.
    Screenshot Go to Electrum-MTNS.
    Screenshot

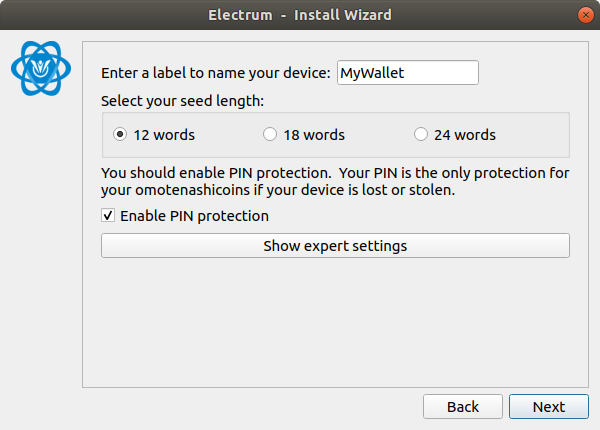

    Click Next button.
    If you want to use more words, select 24words. Screenshot

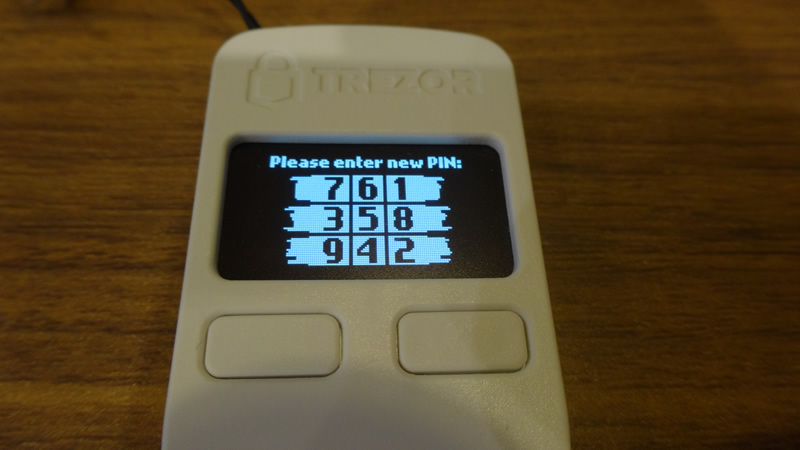

  7. set PIN code and get seed charactors.
    go to your trezor device.
    Screenshot go to Electrum-MTNS on your PC
    Map the display contents of the device and the area displayed by Electrum,
    click the button of the corresponding location, and register the PIN code.
    ex) if you want to input 6 and 9, The mapping with 6, 9 is like this.
    Screenshot
    go to your trezor device.
    Push the right button on the trezor body.
    These 12 keywords are very important. Keep it in a safe place.
    Screenshot Screenshot Screenshot After displaying the 12 keywords, you need to check the 12 keywords again.
    Press the right button again.
  8. Select legacy. Omotenashicoin supports only p2pkh. Other addresses type are not supported. Screenshot
  9. Finally, select whether to encrypt the wallet from the checkbox. Screenshot

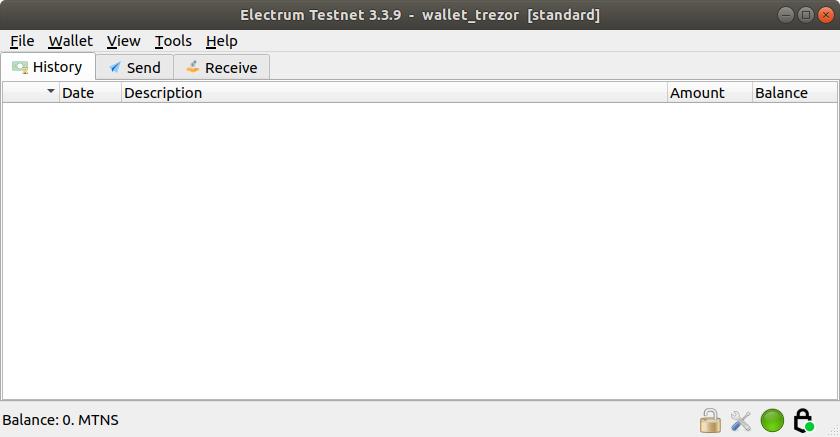

    Opened top window. Screenshot

HOW TO TRANSFER MTNS ASSETS#

This section describes the procedure for transferring MTNS. This asset transfer is a state where the MTNS asset already exists in the hardware wallet.

transferring MTNS other address#

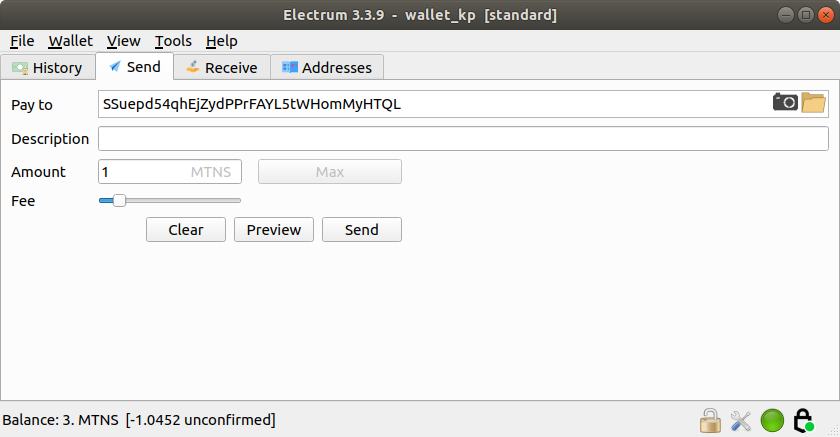

  1. Open the Electrum-MTNS wallet, and send tab clicked.
    Input Pay to address and amount, then click Send button.

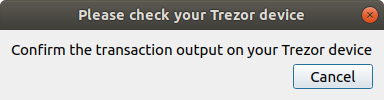

    Perform the procedure while checking your Electrum-MTNS and Trezor Device.
    Screenshot

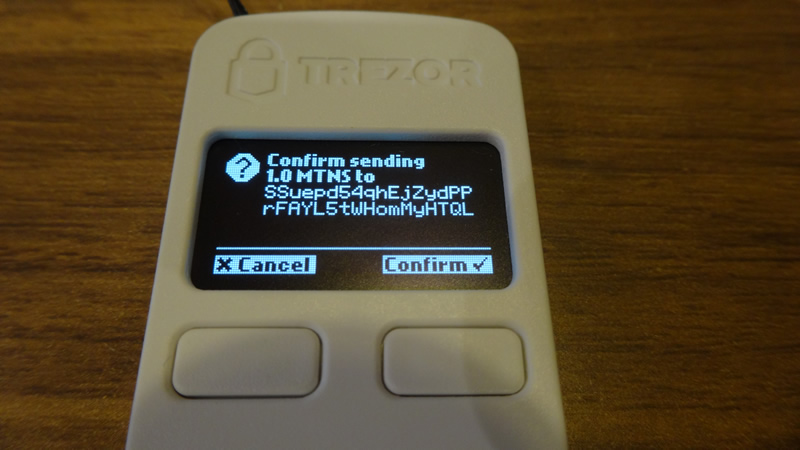

    Push the right button on the trezor.
    The screen will display the amount you have entered.
    Screenshot
    your PC wallet.
    Screenshot
    Push the right button on the trezor.
    The fee is displayed on the screen.
    Screenshot
    your PC wallet.
    Screenshot
    Push the right button on the trezor.

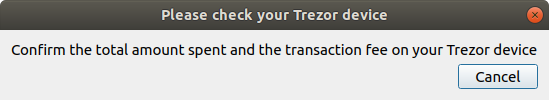

    The screen will show the total amount and fee entered.
    Screenshot
    your PC wallet.
    Screenshot

Transferring MTNS success.
